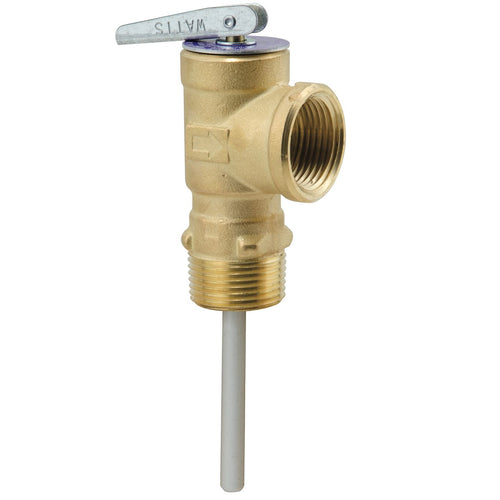

Watts Pressure Relief Valve 150 Psi 10l-2-150210 3/4 3/4 10l-2-150210

Watts

SKU: 15743347

$27.49
Unit price per

Select

Quantity

+ -

This 3/4 inch temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 80,000 BTU/hr. It features a brass body with NPT threaded male inlet and NPT threaded female outlet connections, unique thermostat with special thermo-bonded coating and a test lever. It is ASME rated and CSA listed. The temperature relief is at 210 degrees F (99 degrees C), and the pressure relief range is 75 to 150 psi (5.2 to 10.3 bar). The standard pressure relief settings is 150 psi (10.6 bar)

Features

Unique thermostat with a special thermobonded coating
Automatic reseating
Brass body construction
Stainless steel spring
