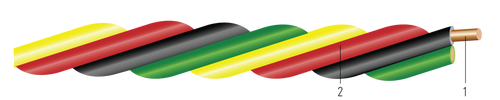

Southwire 10-2 SOL CU THW Twist Submersible Pump Cable 10G 500 Ft

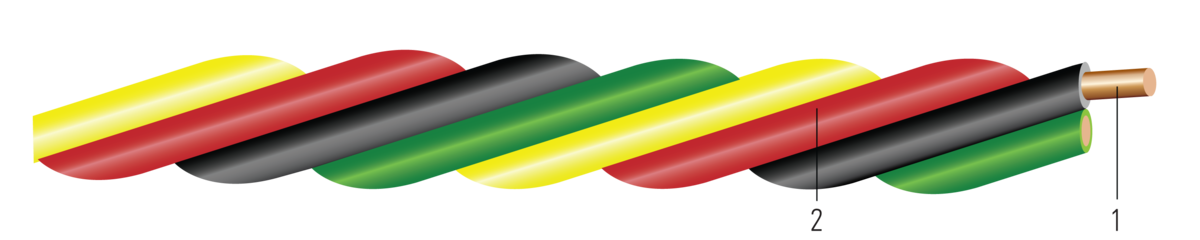

Construction

1. Conductor:Solid soft drawn or fully annealed bare copper per ASTM B3. Stranded class B compressed bare copper ASTM B8

2. Insulation:Polyvinyl Chloride (PVC) Type THW

Standards & References

• ASTM B3 Soft or Annealed Copper Wire

• ASTM B8 Concentric-Lay-Stranded Copper Conductors

• UL 83 Thermoplastic Insulated Wires and Cables

Application & Features
For use in residential, farm and industrial water well applications where the cable is not subject to repeated handling caused by frequent servicing of the pump units. Grounded and ungrounded water well cable systems. Conductors are twisted and colored black, red, and yellow when supplied with three conductors and green ground. Cable is supplied without an overall jacket. For use within well casings.
