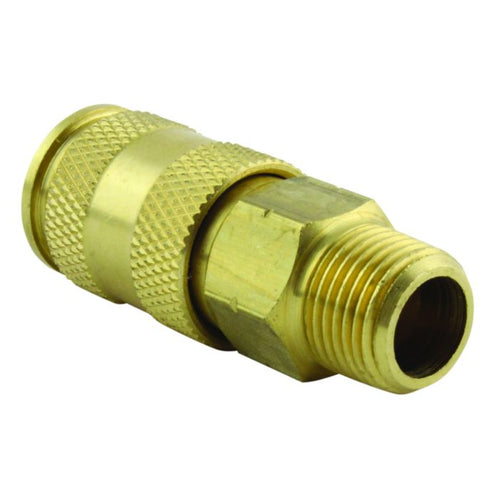

Milton 3/8" MNPT HIGHFLOWPRO® V-Style Male Coupler

Milton

SKU: 14112502

$13.99
Unit price per

Select

Quantity

+ -

HIGHFLOWPRO®: 3/8" Male NPT. 1/4" Basic Flow Size. 300 PSI Max Inlet Pressure. 74 SCFM. 250 Degree F Max Temp.
COMPATIBLE: Will also accept both M-Style® and A-Style plugs. V-Style is recommended to retain maximum flow.
V-STYLE: Milton® V-Style, ColorFit® V-style, + competitor V couplers/plugs are all compatible!
IDEAL: For High Volume, Low Pressure pneumatic applications.
SLEEVE RELEASE: PUSH to connect to plug, PULL sleeve back to remove. Buna-N seals.

DESCRIPTION

Milton® (#767) 3/8" MNPT HIGHFLOWPRO® V-Style Male Coupler

The HIGHFLOWPRO® 3/8" male NPT V-Style couplers have a push-type sleeve release. Simply push plug into coupler to engage; Pull the sleeve release back to remove. Perfect for high volume, low pressure applications. ¼” basic flow size. 300 PSI max pressure. Made of brass. Milton® V-Style couplers will also accept M-Style® and A-Style plugs. However, V-Style plugs are recommended to retain maximum flow.
