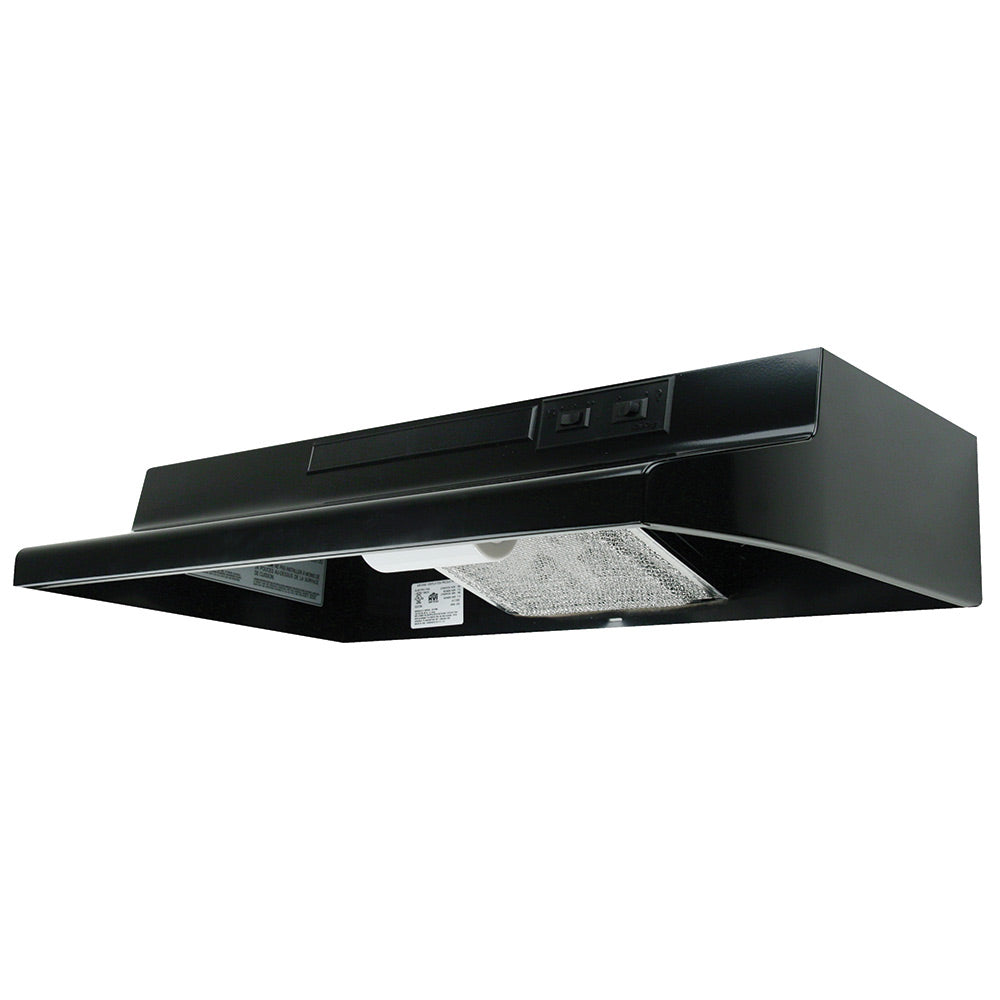

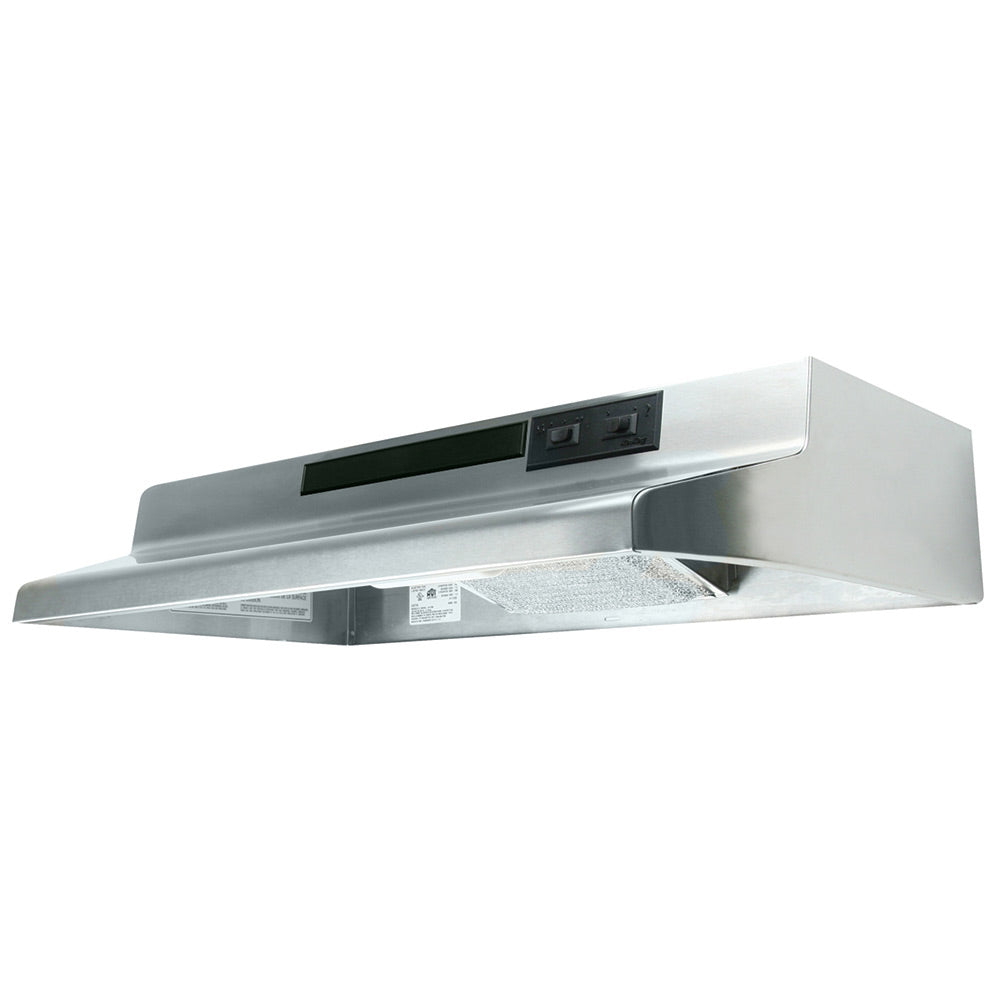

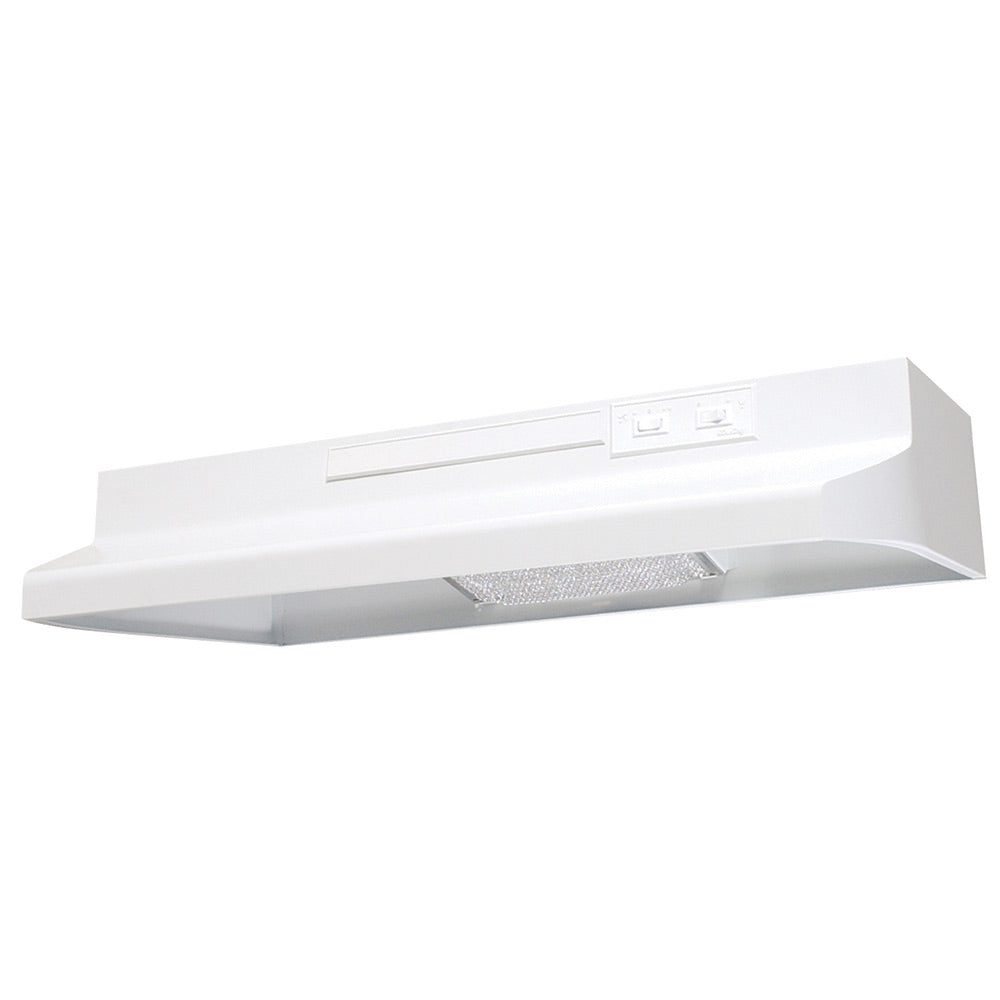

The AV series under cabinet convertible range hoods from Air King provide a perfect solution for kitchens needing economical ventilation. The range hood can be converted to meet all of the most common ducting options – vertical, horizontal or ductless. The included, easily removable washable grease filter captures grease and debris from the cooking surface while the up to 180 CFM of airflow ventilates the smoke, steam and odors outside of the home. Perfect for most standard residential electric cooking surfaces. Mitered sides allow cabinet doors to be opened on either side of the range hood. AV series under cabinet range hoods are available in multiple finishes (white, black and stainless steel) as well as widths (24 inch, 30 inch, 36 inch and 42 inch) to match the color and requirements of your installation.
Details

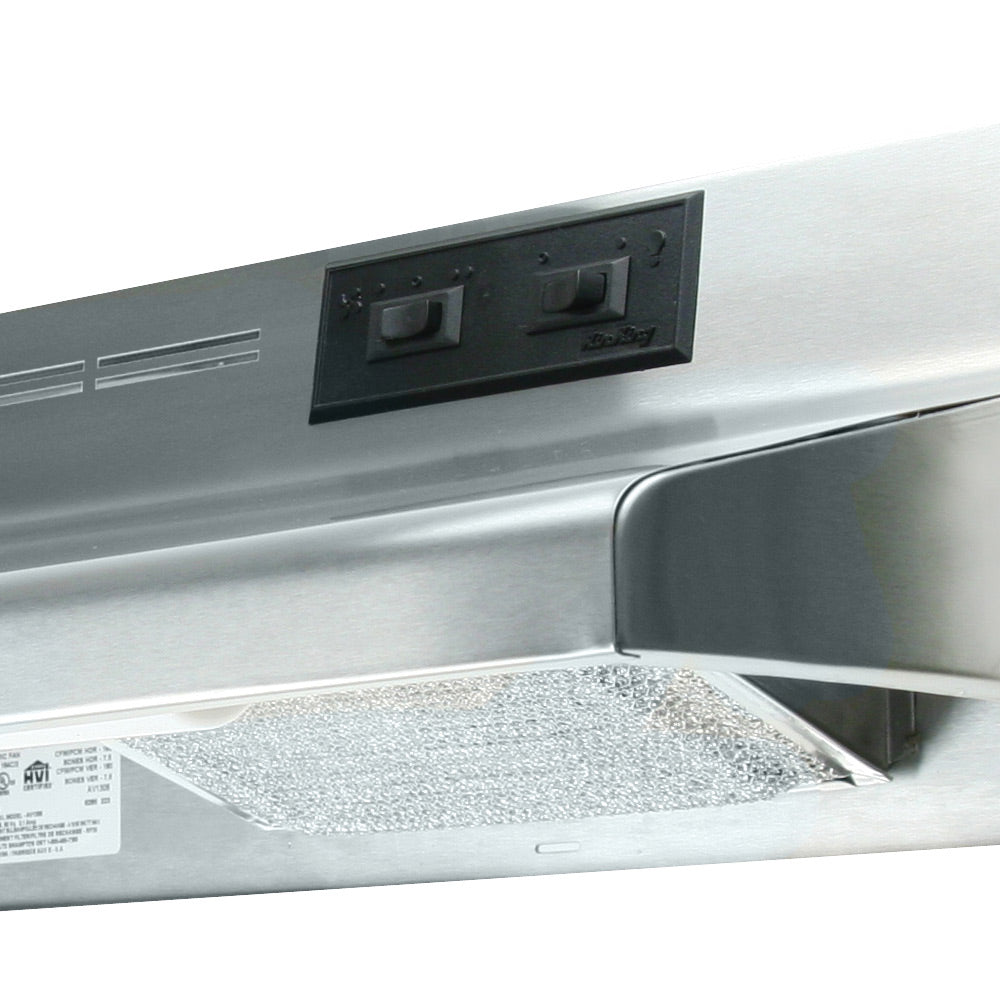

Two speed motor control provides up to 180 CFM of ventilation power, perfect for typical residential electric cooktops.

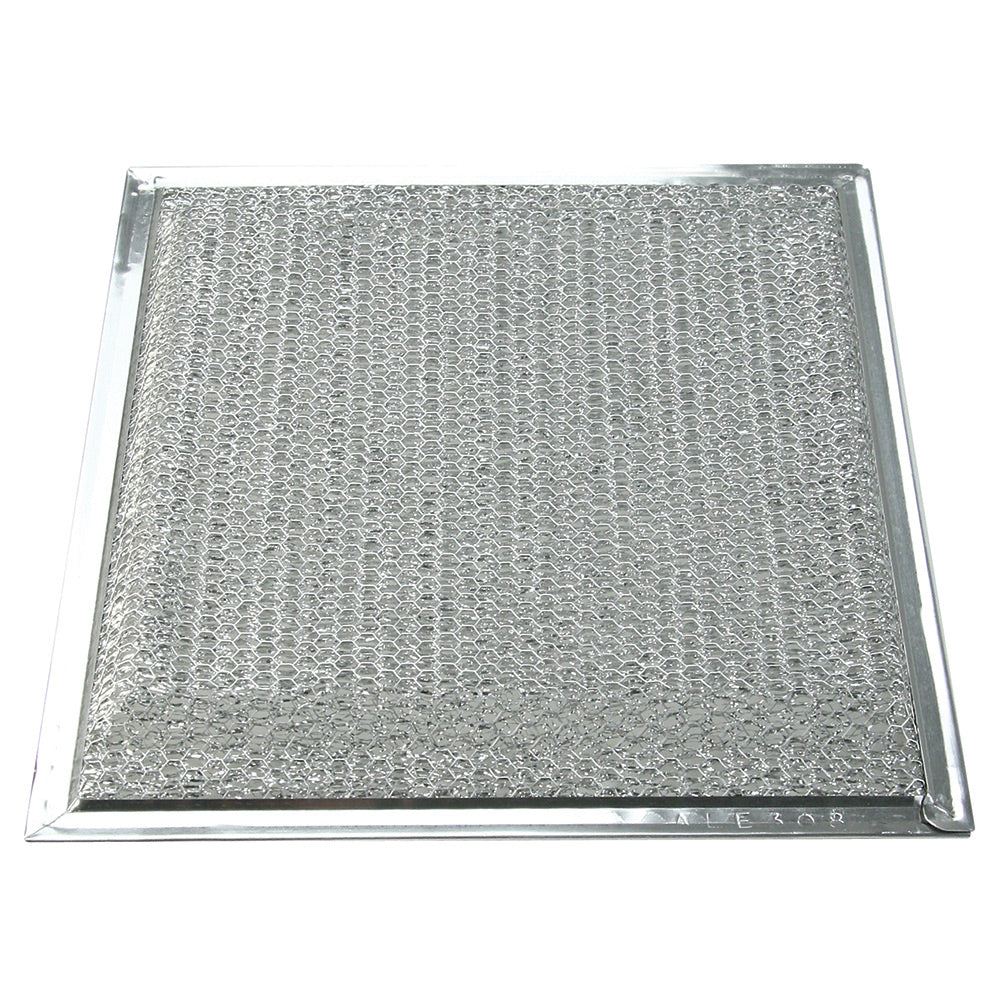

Included, easily removable and washable aluminum grease filter captures grease and debris from the cooking surface.
Utilizes a medium base screw in type lamp (lamp not included). Accepts up to a 15W LED or 60W Incandescent type A19 lamp.
Lighting is located at the front of the range hood for better cooktop coverage.
Range Hood Ducting Options
Vertical: 3.25 inch x 10 inch ducting with collar and backdraft damper included with the range hood.
Horizontal: 3.25 inch x 10 inch ducting with collar and backdraft damper included with the range hood.
7 inch Round Vertical: Convertible to 7 inch round ducting with the addition of model ARD7R collar and backdraft damper (available separately).
Ductless: Convertible to ductless operation with the addition of Air King model RF-34S charcoal filter (available separately). Model RF55 combination filter can also be used in place of the included model RF-35S and model RF-34S filters.
SPECIFICATIONS
| Models |
AV |
| Specification Sheet Download |
AV |
| Available Finishes |
White, Black, Stainless Steel |
| Available Widths |
24″, 30″, 36″, 42″ |
| ADA Compliant |
No |
| Control Switches |
Rocker |
| Speeds |
2 |
| CFM (Vertical) |
180 |
| CFM (Horizontal) |
180 |
| Sones (Vertical) |
7.5 |
| Sones (Horizontal) |
7.0 |
| Sound Level |
Moderate |
| Watts |
87.0 |
| Lighting |
Medium base screw in type – up to a 15W LED or 60W Incandescent type A19 lamp |
| Night Light |
– |
| Included Filters |
Aluminum Grease Filter: RF-35S |
| ASHRAE 62.2 Ventilation |
No |
| ENERGY STAR® certified |
No |
| Can be used to Comply with California Title 24 requirements |
No |
| Ducting |
3.25″ x 10″ |
| Convertible to 7″ round |
With addition of ARD7R collar and damper (available separately) |
| Convertible to ductless |
With addition of RF-34S odor filter (available separately) |
| Collar / Damper |
Metal |
| Mounting |
Under Cabinet |
| Dimensions |
 |
