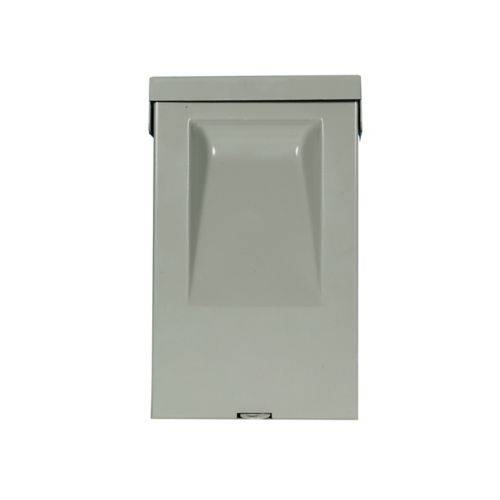

Eaton DPU222RT Air Conditioning Disconnect Non-fused pullout 60A

Eaton DPU222RT Air Conditioning Disconnect Non-fused pullout 60A

Eaton

SKU: 10301778

$24.99
Unit price per

Select

Quantity

+ -

Eaton Air Conditioning Disconnect, Non-fused pullout, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al, NEMA 3R Galvanized Steel enclosure, 3 hp at 120V, 10 hp at 240V, ANSI 61, Individual Package for Resale

Product specifications
Type Non-fused pullout
Amperage Rating 60A
Horsepower 3 hp at 120 V, 10 hp at 240 V
Voltage rating 120/240 V
Wire size #14-3 AWG Cu/Al
Color ANSI 61 gray
Enclosure NEMA 3R
Enclosure material Galvanized steel
Interrupt rating 10 kAIC
